Is there any stock | Yes | Brand | Keqirui |
Processing customization： | Yes | Use： | glue spray |
Power | 1.4KW | Sol velocity | 200kg/h |
Cylinder capacity： | 55gallon（200KG） | After-sales service： | One year warranty |
Operating temperature | 180 | Suttle： | 200KG |
Peak viscosity： | 100000pcs | Temperature control range： | 40-250℃ |
Temperature control mode | touch pane | Voltage： | 380v-50Hz |
Hose output： | Two ways | Model： | PUR-055A |
Applicable gule: | Hot melt glu | Driver type | Motor gear pump |
Boundary dimension： | 1570*650*1760mm | Output | 400 |

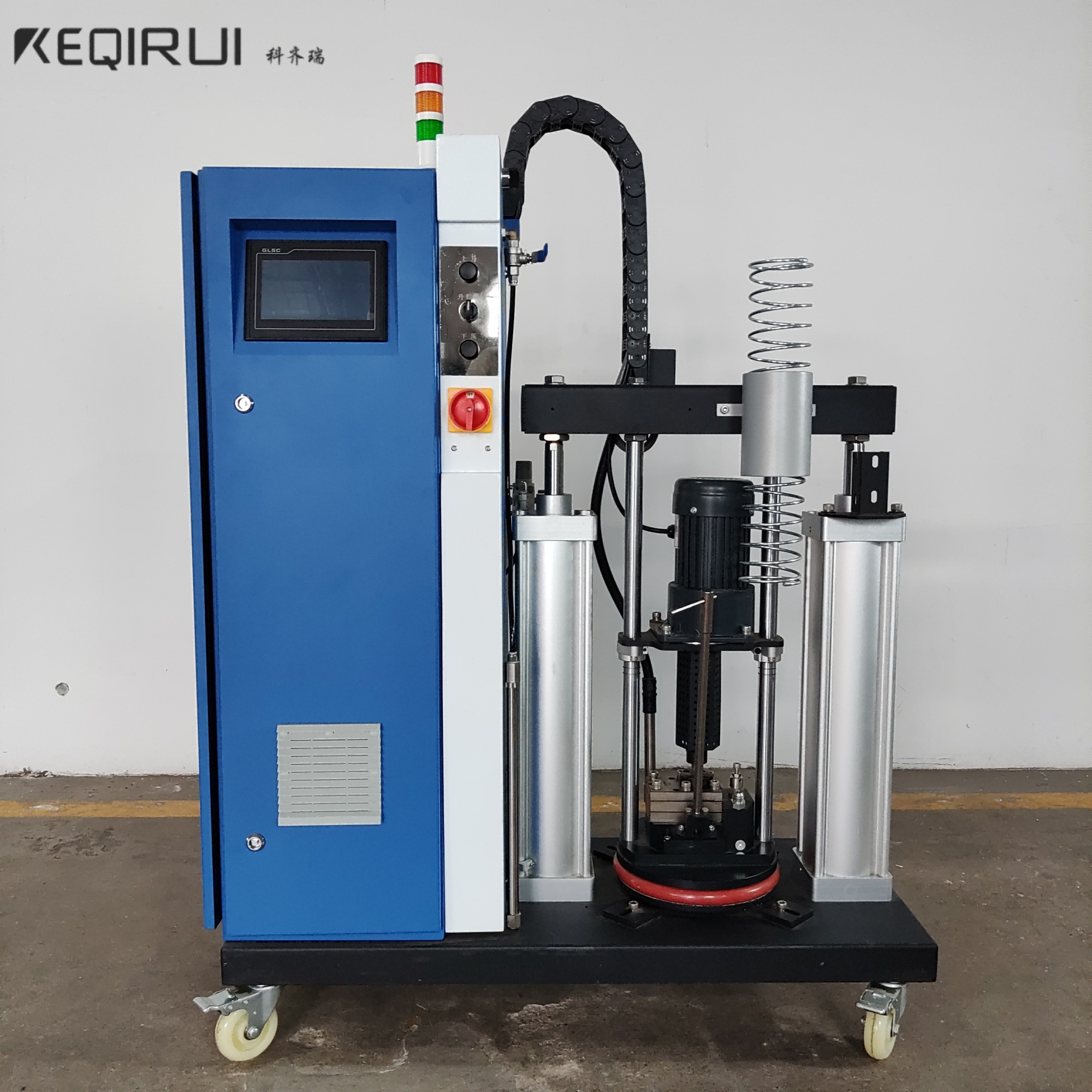

PUR Hot melt glue machine PUR-050A Note:
1. If the temperature in some areas is too high after heating, the user should pay attention to wearing protective devices.
2, the pressure of the glue mouth is large, the glue gun should not be aimed at the personnel or the machine.
3, the operation of the equipment or the replacement of a part of the equipment requires professionals, or under the guidance of the operation.
5, when disassembling the rubber hose gun valve body, it is necessary to close the motor under preheating conditions, and the motor is disassembled with a wrench to ensure that there is no rubber pressure;
6, equipment maintenance can not use gasoline, diesel cleaning;
7. The rubber gun must be fixed with two wrenches and must be operated with gloves
8. When disassembling the hose or glue gun, ensure that it is heated and touch the hose interface or the outlet of the rubber machine to prevent Pur rubber hardening and blocking the channel;
9. When replacing the rubber drum, do not forcibly lift the pressure disc out of the drum when the equipment is preheated, which can easily lead to the collapse of the seal ring of the pressure disc;
Description:
Product model | Pur-050a five gallon platter pur hot melt adhesive machine |
Number of spray guns available | 1-2 |
Maximum viscosity | 500-12,000 CPS |
Maximum operating temperature | 260℃ |
Electricity demand | 380V |
Glue machine power | 7kw |
Motor population | A set |
Number of gear pumps | A set |
Motor speed | Stepless speed regulation 0-100r |
Number of insulation pipes | 1-2 SET |
Maximum glue supply (L/h) | 20L/h |
Weight of glue machine (kg) | About 175kg |
Glue machine size (mm) | 1097x620x1800 |
Maximum storage Capacity (L) | 20L |
Pur-050a five gallon press disc pur hot melt glue machine advantages
1, the use of servo controller motor, and imported gear pump precision control the amount of glue.
2, PLC operation panel centralized control, easy to use and operation.
3, cylinder, gear pump double work, while with the pressure regulator so that the glue pressure can be adjusted to maximize.
4, the sealing of the rubber cylinder is strong, to avoid the deterioration of the internal materials caused by contact with air during the working process.
5, can be equipped with a single nozzle, can also be equipped with flexible hot melt hose, one machine can save costs.
6, the internal pressure holding ability and constant temperature ability, eliminate and reduce gum carbonization and meet the requirements of environmental protection and energy saving.
7, the use of imported technology forging pressure plate high power pressure plate, melting speed heating speed.
Product use:
PUR hot melt adhesive machine-050A woodworking cladding, textile fabric composite, PET transparent box, automotive interior parts. Headlights, bookbinding, adhesive production process occasions, widely used in printing, packaging, clothing and shoes, electronics, furniture and other industries of product assembly.
Product features:
1, the whole machine design by mechanical and electrical control system two parts with reasonable structure, easy operation and maintenance, the internal increase of space, so that the electronic control box has enough heat dissipation space, greatly reduce the damage of electronic components and power loss.
2, gear pump and motor connection using universal joint connection, its role is to make the transmission shaft at both ends of the Angle is equal to ensure that the output shaft and shaft into the instantaneous angular speed is always equal, to ensure the rubber machine in high-speed operation of stability and uniformity.
3. The press plate is made of aluminum alloy precision casting, processed by precision processing technology, and the surface is formed by DuPont Teflon deep penetration sintering treatment, which has the advantages of high coating strength and is not easy to fall off, reducing the phenomenon of hot melt adhesive carbonization.
4, the host adopts high-precision reflux valve (reflux valve sensitivity ±1bar), which has a locking function to avoid damage to equipment or personnel safety caused by misoperation, the whole filter design, the use of heavy multi-layer filtration, can prevent PUR glue expired suspected solid blockage phenomenon, pressure plate internal use pur glue overpressure protection, to ensure the stable and reliable operation of the system.
Note: The melting temperature of polyurethane reactive hot melt adhesive is lower than the use temperature of general hot melt adhesive (170-260 ℃), can be applied at low temperature, and can be used at 120-150 ℃. Save energy, reduce the corrosion of the sizing device, especially suitable for the bonding of heat-sensitive materials (such as plastics, etc.).
