Is there any stock： | Yes | Brand： | Keqirui |
Processing customization： | Yes | Use： | glue spray |
Power： | 1.4KW | Sol velocity： | 200kg/h |
Cylinder capacity： | 55gallon（200KG） | After-sales service： | One year warranty |
Operating temperature： | 180℃ | Suttle： | 200KG |
Peak viscosity： | 100000pcs | Temperature control range： | 40-250℃ |
Temperature control mode： | touch panel | Voltage： | 380v-50Hz |
Hose output： | Two ways | Model： | PUR-055A |
Applicable gule： | Hot melt glue | Driver type | Motor gear pump |
Boundary dimension： | 1570*650*1760mm | Output： | 400 |
Product features:

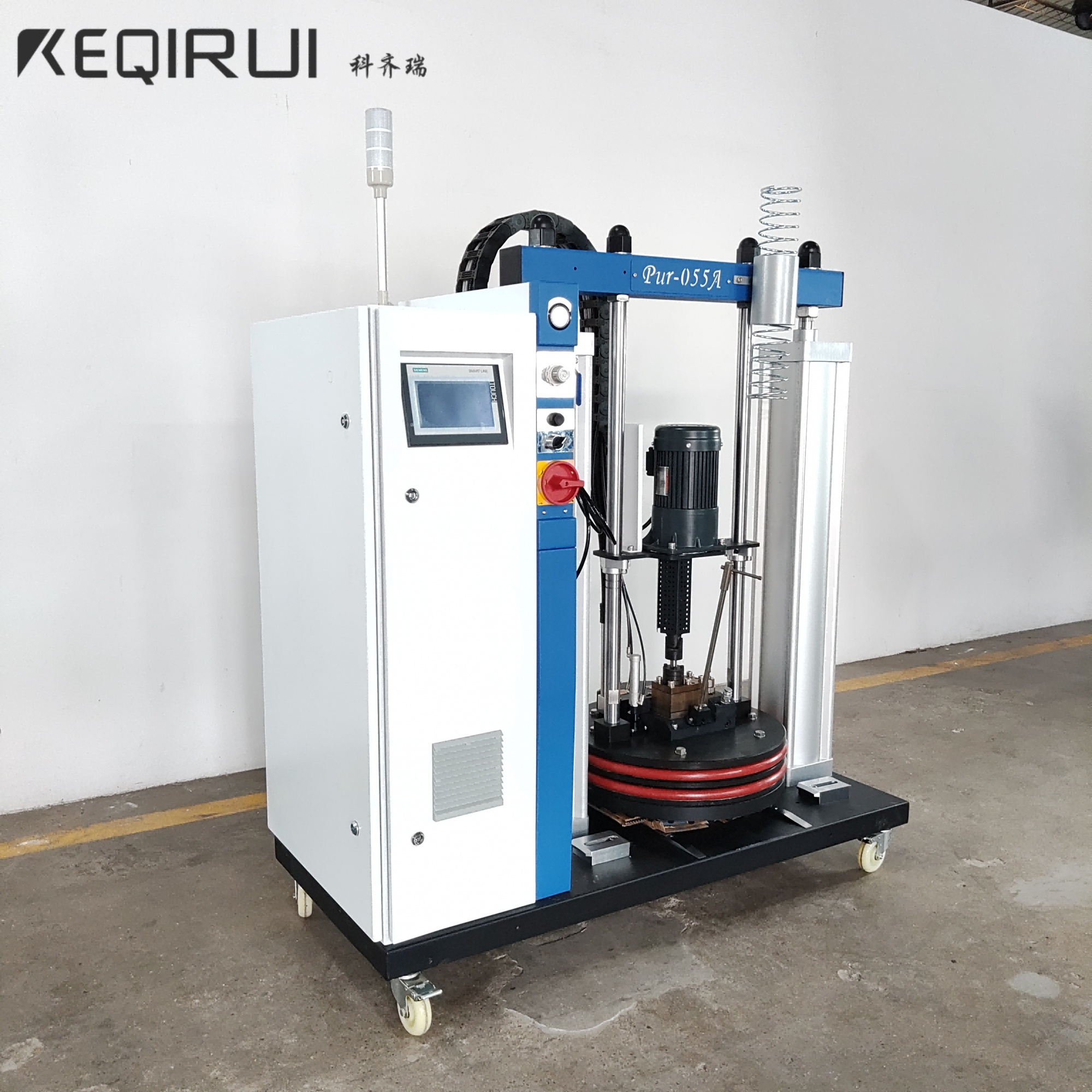

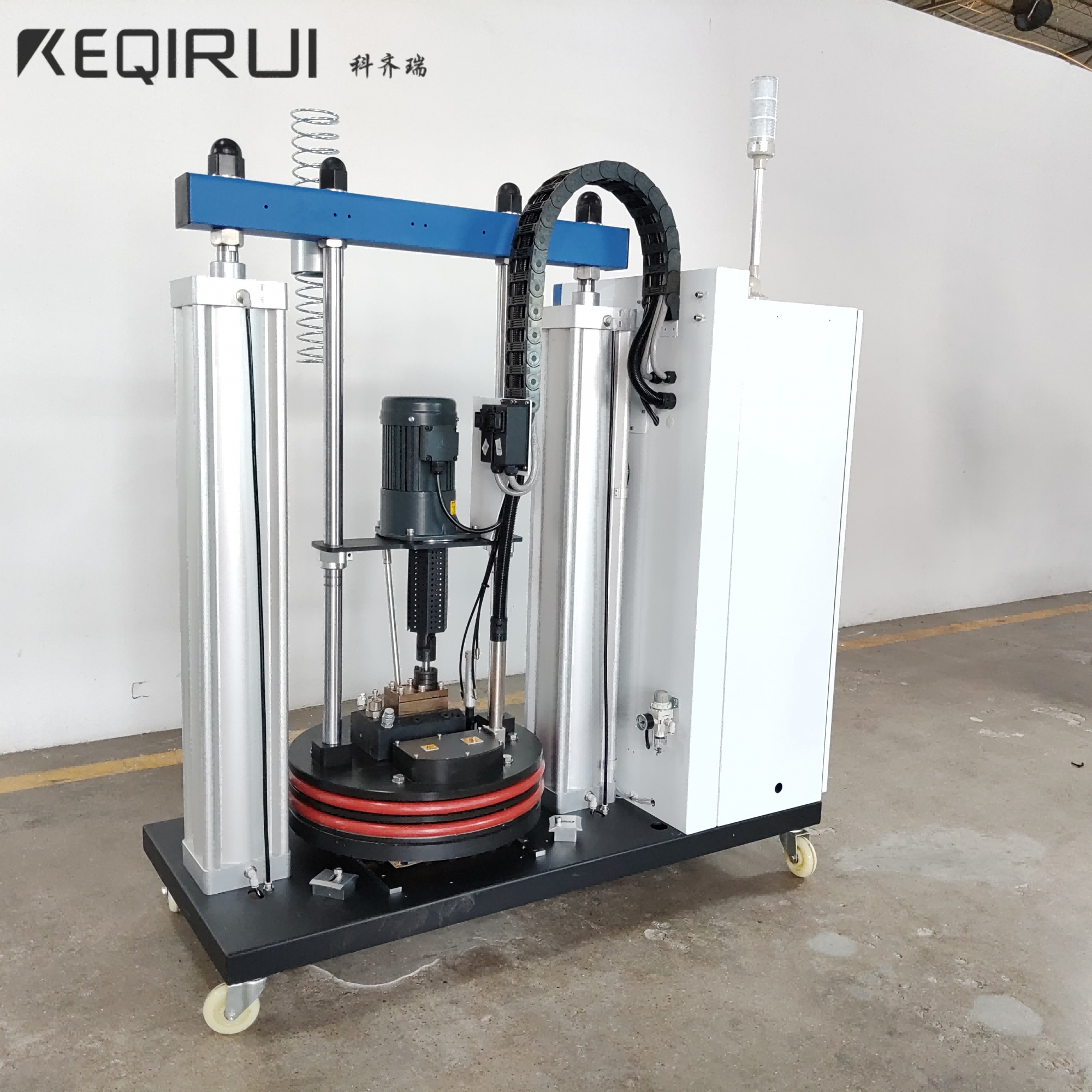

Advantages of 55 gallon pressure plate PUR hot melt adhesive machine:
1. Using motors and gear pumps to precisely control the amount of glue produced.
2. PLC operation panel centralized control, easy to use and operate.
3. The cylinder and gear pump work together, and at the same time, they cooperate with the pressure regulating valve to adjust the adhesive pressure to the maximum.
4. The rubber cylinder has strong sealing performance, avoiding the deterioration of internal materials caused by contact with air during the working process.
5. It can be equipped with a single nozzle or a flexible hot melt hose, which can save costs by using multiple machines.
6. Strong internal pressure holding and constant temperature capabilities, preventing and reducing gum carbonization while meeting environmental and energy-saving requirements.
7. Adopting imported high-power melting tank technology, the melting speed and heating speed of the adhesive are fast.
Product Usage:
The PUR hot melt adhesive machine can be utilized for woodworking wrapping and flat pasting, home furniture edge sealing, textile fabric lamination, PET transparent boxes, automotive interior parts, car lights, book binding, and adhesive bonding processes. It is widely applied in product assembly across various industries, including printing, packaging, clothing and footwear, electronics, and furniture.
Product features:
1. The overall design of the machine consists of two main parts: mechanical and electrical control systems. It has a reasonable structure, easy operation and maintenance, and an increased internal space, which provides sufficient heat dissipation space inside the electronic control box, greatly reducing damage to electronic components and power loss.
2. The connection between the gear pump and the motor adopts a universal joint connection, which is used to make the angle between the two ends of the transmission shaft equal, ensuring that the instantaneous angular velocity of the output shaft and the shaft in shaft is always equal, and ensuring the stability and uniformity of the glue machine during high-speed operation.
3. The melting tank is made of precision cast aluminum alloy and processed using precision machining technology. The surface is treated with deep penetration sintering of DuPont PTFE, which has the advantages of high coating strength and is not easy to peel off, reducing the phenomenon of carbonization of hot melt adhesive.
4. The host adopts high-precision reflux valves (reflux valve sensitivity ± 1 bar) with locking function to avoid damage to equipment or personnel safety caused by operational errors. The whole machine is designed with multiple layers of filtration to prevent PUR glue from becoming clogged due to expiration. PUR glue overpressure protection is used inside the melting tank to ensure stable and reliable operation of the system.
Note: The melting temperature of polyurethane reactive hot melt adhesive is lower than the operating temperature of general hot melt adhesives (170-260 ℃). It can be applied at low temperatures and can be used at 120-150 ℃. Save energy consumption, reduce the corrosiveness of the adhesive device, especially suitable for bonding heat sensitive materials such as plastics.
Application scope:
1. The automotive industry (interior sealing, headlight manufacturing, windshield assembly, body, foot pedals, seats, roof door and window sealing, etc.);
2. Home appliance and home furnishing industry, such as refrigerator sealing and filling, air filter industry, mattress, sofa, sponge non-woven fabric large-area spray glue and other home product assembly (home appliance, home and bonding)
Optional dispensing methods:
1. Dot, strip, fiber, spiral (spray), roll coating
2. You can choose automatic glue spraying, semi-automatic glue spraying, or handheld gun style glue spraying, no cleaning PUR glue pot, etc.
