Is there any stock： | Yes | Brand： | Keqirui |
Processing customization： | Yes | Use： | glue spray |
Power： | 14000W | Sol velocity： | 20kg/h |
Cylinder capacity： | 5gallon（20kg） | After-sales service： | One year warranty |
Operating temperature： | 180℃ | Suttle： | 200KG |
Peak viscosity： | 100000pcs | Temperature control range： | 30-250℃ |
Temperature control mode： | touch panel | Voltage： | 380v-50Hz |
Hose output： | 2-4 ways | Model： | PUR-050S |
Applicable gule | PUR Hot melt glue | Driver typ | Motor gear pum |
Boundary dimension： | 1100*640*1571mm | Output： | 400 |
Product use: The 2 kg PUR-050S hot melt adhesive machine is suitable for pvc packaging industry, woodworking furniture edge sealing compound, automotive industry interior sealing, lamp manufacturing, windshield assembly, door manufacturing, non-woven industry diapers, adult incontinence products, sanitary napkins and other primary supplies, coating composite industry (trademark paper, label double-sided tape, medical breathable tape, clothing clothing compound), product assembly Industries (home appliances, wire and cable).

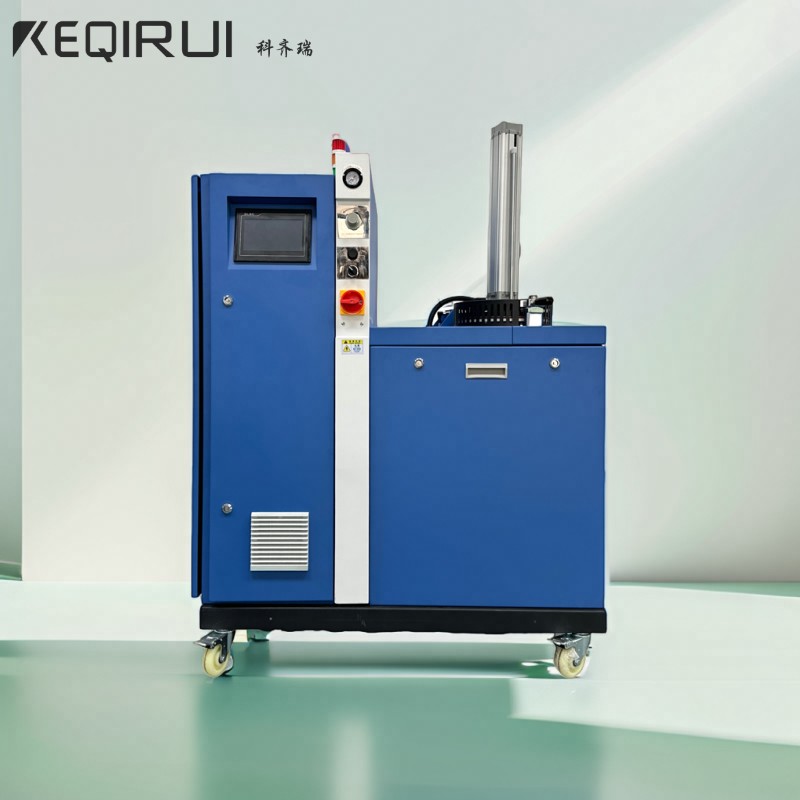

Product features: The Pur glue machine consists of three parts: host, throat, manual/automatic dispensing gun. With temperature upper and lower limit alarm, frequency conversion abnormal alarm and other functions.
1, progressive heating melting: the heating part is located below the glue, when the melting cylinder is heated, only the bottom layer of glue contacts with the heating cylinder, so that it reaches the melting point and melts, the upper part of the rubber cylinder is not heated at this time, how much is needed in production, how much is melted, to avoid the glue long-term heating and aging deterioration.
2, glue and air isolation: there is an O-ring seal between the heating cylinder and the cylinder head, so that the melted liquid glue will not be in contact with the air, ensuring the requirements of Pur service conditions.
3, Teflon protective layer: the outer surface of the rubber cylinder is coated with Teflon coating, and the glue is easy to remove, which can effectively prevent the carbonization of glue, ensure the best gum, and reduce the blockage of the glue delivery system.
4, variable frequency adjustment glue output: precision gear metering pump, variable frequency speed regulation and stable motor operation, can accurately control the glue output.
5, the motor operation adopts intelligent protection: the motor has a forced fan installed for heat dissipation, when the rubber cylinder temperature does not reach the set temperature, the motor can not run, strengthen the protection of the motor equipment.
6, insufficient glue monitoring: an electronic sensor to monitor the amount of glue in the glue tank, to prevent the lack of glue or too much, made into an alarm.
