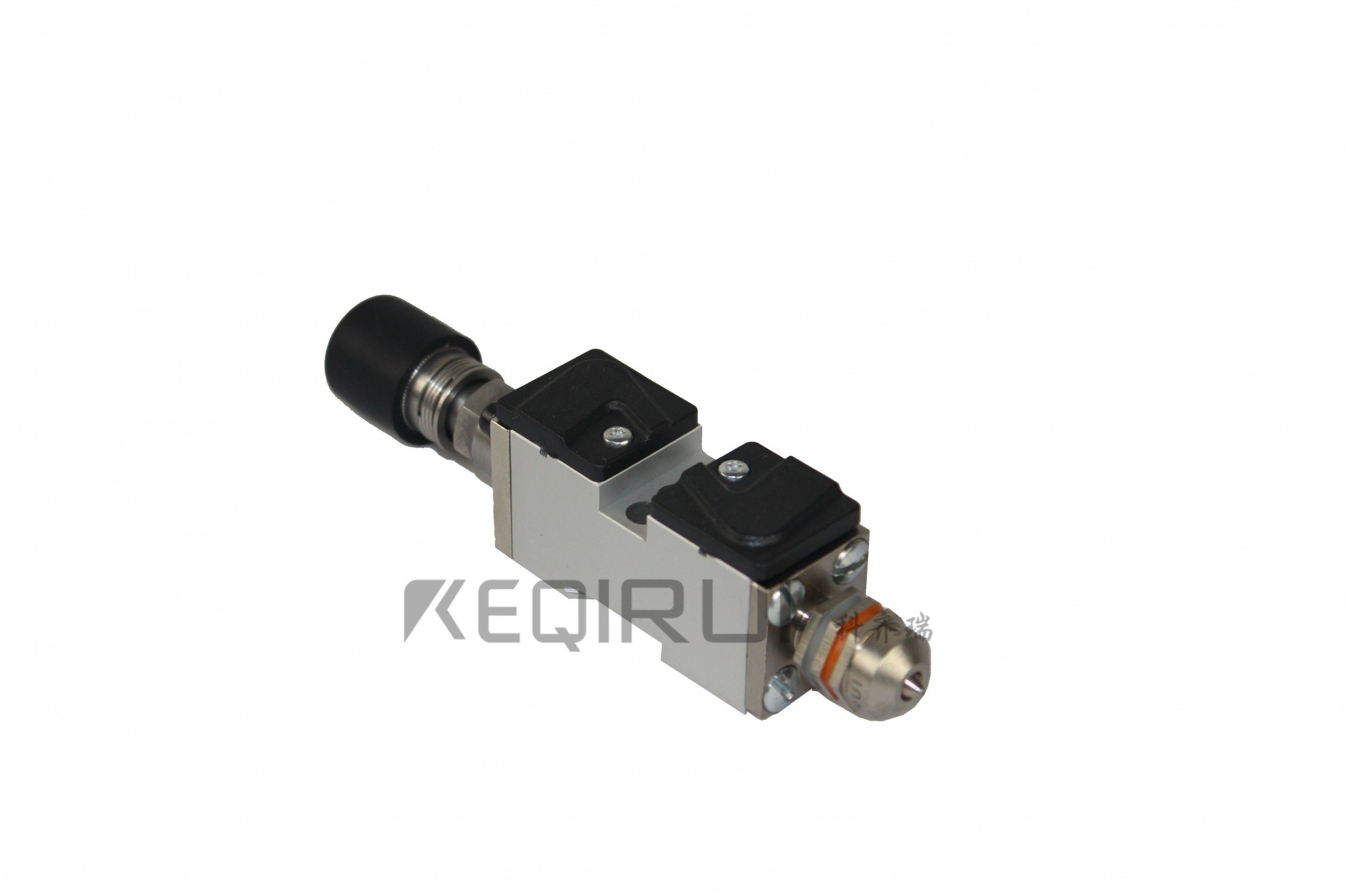

Automatic sealing special BSD-3520024

Remove the gun and nozzle when the glue gun is preheated to prevent thread damage and short service life. 2. Remove the gun and nozzle when the glue gun is preheated. 3. Remove the glue gun and the glue spraying module without glue pressure.

Select the number of specifications

Please check the product information you want!

Product details

High speed automatic dispensing gun BSD-3520024

Hot melt glue machine glue gun technical parameters:

Spray rate	3-5 times per second
Working mode	Automatic glue spraying
Rated voltage	220V800W
Air pressure	2~5kg
Glue gun control mode	The gas opens and the gas closes
Temperature control	Sensing intelligent control
Sensing mode	Type K, Pt100, Ni120 (optional)
Preheating time	5-10 minutes
Service temperature range	10-280℃
Solenoid valve voltage	MAC24v/220v (optional)
The amount of spray glue	adjustable

Application Industry:

1, packaging industry: honeycomb cardboard products, boxes, food packaging, beverage tube, etc.;

2, packaging materials: adhesive buckle, tape, etc.

3, industry: medical tape, mattresses, masks, band-aids and other adhesive.

4, coating industry: weaving and weaving materials of composite coating scraping.

5, furniture industry: adhesion of various furniture materials

6, label industry: all kinds of label gluing.

7. Cosmetics industry: product packaging, pendant bonding, etc.

8, home appliance industry: foam type hot melt adhesive in home appliances sealing and caulking, etc.

9, automotive industry: front, rear lights, windshield, doors, car logo manufacturing and interior paste.

10, filter industry: no partition air filter, water filter, automotive filter, paste, etc.

The hot melt glue dispensing spray gun of Cozirui adopts imported materials to make the thimble and the glue outlet part are mechanically sealed, and the wear resistant service life is longer. The contact part uses high-precision grinding and matching, which is sensitive and completely eliminates the phenomenon of dripping glue and leakage. And ensure the use of high strength and long life. No wire drawing, dispensing gun dispensing head inlaid with carbide steel core nozzle, uniform glue, sensitive response, no leakage and drip glue phenomenon, the glue gun adopts double filter online filter function.

No comment

Product details

High speed automatic dispensing gun BSD-3520024

Hot melt glue machine glue gun technical parameters:

Spray rate	3-5 times per second
Working mode	Automatic glue spraying
Rated voltage	220V800W
Air pressure	2~5kg
Glue gun control mode	The gas opens and the gas closes
Temperature control	Sensing intelligent control
Sensing mode	Type K, Pt100, Ni120 (optional)
Preheating time	5-10 minutes
Service temperature range	10-280℃
Solenoid valve voltage	MAC24v/220v (optional)
The amount of spray glue	adjustable
