Availability: | yes | brand: | Keqirui |
Processing and customization: | yes | use: | Spray glue |
power: | 1800W | Sol speed: | 10kg/h |
Dissolving cylinder capacity: | 10kg | After-sales service: | One year warranty |
Working temperature: | 180℃ | net weight: | 52KG |
Maximum viscosity: | 100000pcs | Temperature control range: | 40-250℃ |
Temperature control mode: | touchscreen | Voltage: | 220v-50Hz |
Hose output: | 2 -4 way | model: | MELTXA-10 |
Applicable glue: | hot melt glue | Drive type | Air pressure pump |
Overall dimensions: | 655*260*495MM | Yield: | 1000 |
Scope of application:
1, used for fine book boxes, moon cake boxes, food boxes, wine gift boxes and other packaging boxes, packaging boxes, paper bags, paper packaging box spray glue;
2, cosmetic aluminum cover, cream cover, spray head, pump head, thousand autumn cover, essential oil cover, gift box and other cosmetic packaging products spray glue;
3. Adhesive tape, express bag, bubble bag, envelope bag, file bag, handbag, hand bag, etc. Paper bag sealing spray glue process replaces double-sided tape.
4, automotive industry (interior sealing, lamp manufacturing, windshield assembly, body, pedal, seat, ceiling door and window sealing, etc.);
5, home appliances industry, such as refrigerator sealing and filling, air filter industry, mattress sofa sponge non-woven large area spray glue and other home products assembly (home appliances, home and fit)
6, crystal ball, hard hat, hair jewelry, handmade jewelry, toys, sealing box (box), woodworking, paper, decorative color box, buffer material assembly, beverage label, book binding and electronics industry and other packaging applications;

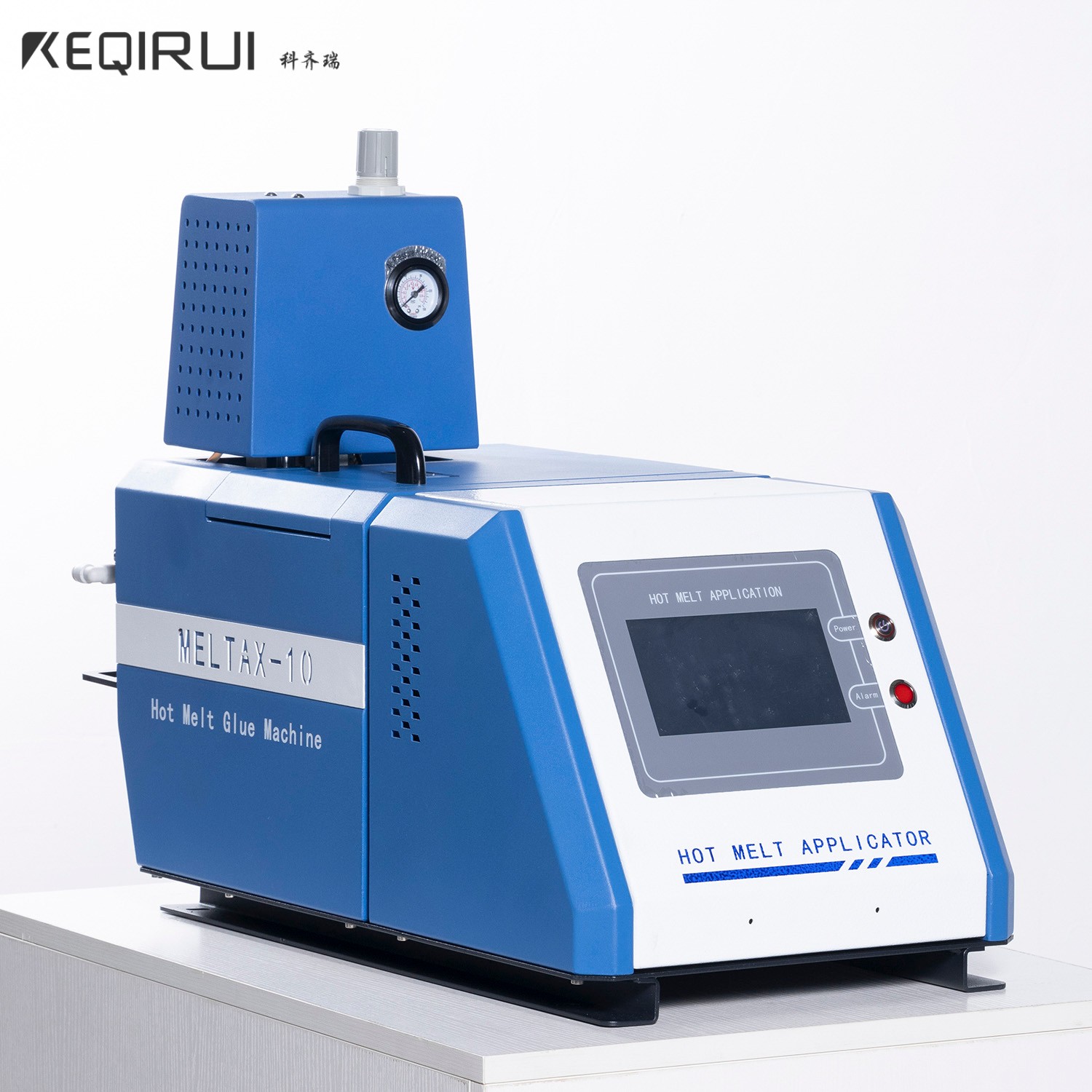

Equipment characteristics: hot melt adhesive machine Meltax-10
★ With the hose equipped with automatic spraying control for production, gluing height and Angle can be adjusted according to requirements;
★ With hose and portable spray gun can do large area mobile spray;
★ Optional 1-3 working position spray glue, saving procurement costs;
★ High strength integrated molding melt groove, blade heating plate, increase the heating area, improve the melt rate, melt groove spray Teflon anti-sticking layer, the inner wall is smooth without diamond horn structure, effectively prevent the accumulation of rubber carbonization;
★ Piston pump processing accuracy (using imported technology), effectively ensure the stability of air pump up and down stroke rubber;
★ The glue cylinder is imported baked Teflon spray, non-stick.
Glue production method:
1, spot, strip, fiber, spiral (spray)
2, can choose automatic spray glue, semi-automatic spray glue, or hand gun spray glue
Parameters:
Model number | Meltax-10 |
Control mode (optional) | Single chip microcomputer |
Mode of use | Hand held glue gun/fixed automatic glue gun |
Heat bath sol velocity | ≥10L/Hour |
Maximum heating tank capacity | ≥10L |
Pressure pump pump glue per hour | ≥10.0L/h |
Control mode | Pneumatic pump |
Maximum service temperature | MAX280℃ |
Standard rubber export quantity | Routes 1-3 |
Glue pump (optional) | Gear pump/piston pump |
Working pressure | 0.2-0.8Mpa |
Power source | AC220V 60/50HZ 1.8KW |
Gross weight of equipment | ≥40KG |
Overall dimension | （mm620L×320W×600H |
